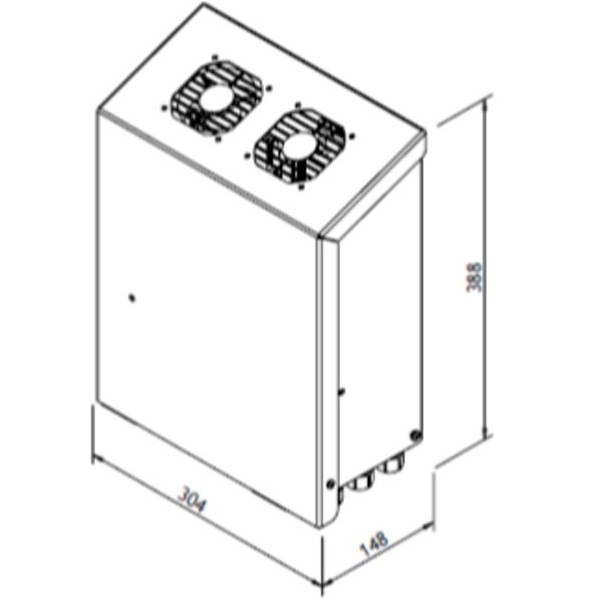

Connector size Ø28 Fiber type PMMA / Glass Size 390x305x150 mm Colour Black Supply voltage 100-240 V / 50-60 Hz Light source power 100 W Total power 115 W Main fuse Integrated auto. Power cord Cord set w/ earthed connector Data connection 3,5 mm phone/jack DALI Driver type LED Driver CC Driver life >100,000 hrs Thermal protection Integrated auto Ventilator type DC axial fan Fan noise level 30 dB(A) Fan life 40000@60°C (L90) hrs Max. ambient temperature 45 °C Min. ambient temperature -10 °C Light source LED Light source lifetime >35.000 h Light source manufacturer Nichia Light source colour temperature 4,000 K Light source CRI 90+ Lumen maintenance L 70 Operating environment Indoor / dry locations Protection rating IP 20 Material Aluminium and plastic Weight 4 kg Surface treatment Anodised
FL 1500 C DMX Colour 4000K CRI 90+
Light generator designed for end lights and sidelight fibres where high entensity colour change effect is required. Typical fields of application: interior as well as exterior lighting, big starry sky ceilings, works of art, entrances, big rooms, lobbies, canopies, fountains, swimming pools, indication lights and façade lighting. FL 1500 DMX C Colour features a DMX controlled 6-colour wheel and very smooth dimming. Additional features are instant-on and hot restrike. Twinkle wheel and dual wheel versions with colour and twinkle wheels as well as dimmable white light versions are also available. All versions are available in an outdoor series.
| Title | Item | |
|---|---|---|
|
CTC filter +1000K Ø28 | 01261023 |
|
Mounting Kit FL 1500 C | 01369001 |
|
DMX 512 Sunlite control unit, USB | 01600302 |
|
DMX 512 Sunlite control unit, IP | 01600303 |
|
Adaptor Ø28/Ø9 | 78000130 |
|
FL 1500 XT filter holder | 49001530 |
|
CTC filter -1000K Ø28 | 01261019 |
|
CTC filter -1200K Ø28 | 01261020 |
|
CTC filter -900K Ø28 | 01261021 |
|
CTC filter +2000K Ø28 | 01261022 |
|
DMX cable 5 m for XT-2 | 99030062 |
|
DMX cable 10 m XLR plugs | 99030057 |
|
DMX cable 10 m XLR plug for XT-2 serie | 99030063 |
|
DMX cable 1 to 50 m from control unit | 99030060 |
|
DMX cable 11 to 50 m for XT-2 | 99030064 |
|
DMX cable 2.5 m for XT-2 | 99030061 |
|
DMX kabel 51-100 m XLR stik | 99030059 |
|
DMX cable 11 to 50 m XLR plugs | 99030058 |
|
DMX line termination, XLR male | 99030065 |
|
DMX cable 5 m XLR plugs | 99030052 |
|
DMX cable 2.5 m XLR plugs | 99030056 |
|
DMX cable per metre | 99030055 |
|
DMX 512 splitter | 01600310 |
