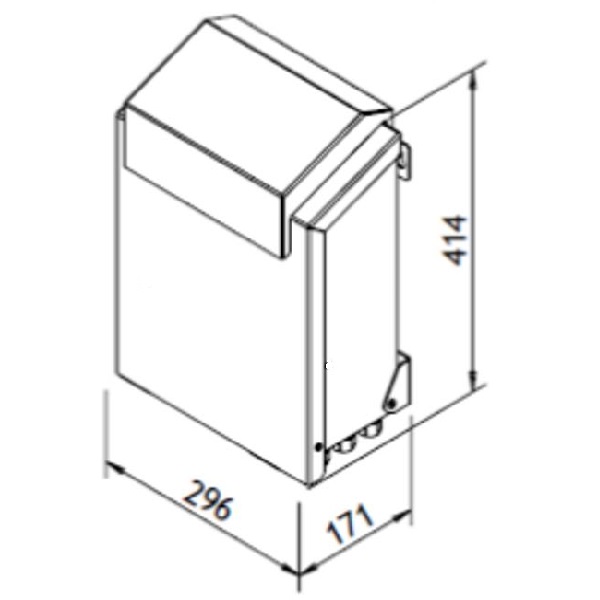

Connector size Ø28 Fiber type PMMA / Glass Size 415x305x175 mm Colour Black Supply voltage 100-240 V / 50-60 Hz Light source power 100 W Total power 115 W Main fuse Integrated auto. Power cord Cord set w/ earthed connector Data connection 3,5 mm phone/jack DALI Driver type LED Driver CC Driver life >100,000 hrs Thermal protection Integrated auto Ventilator type DC axial fan Fan noise level 30 dB(A) Fan life 40000@60°C (L90) hrs Max. ambient temperature 45 °C Min. ambient temperature -10 °C Light source LED Light source lifetime >35.000 h Light source manufacturer Nichia Light source colour temperature 4,000 K Light source CRI 90+ Lumen maintenance L 70 Operating environment Outdoor / wet locations Protection rating IP 45 Material Aluminium and plastic Weight 4 kg Surface treatment Anodised
FL 1500 XT C DMX Dual 4000K CRI 90+
Light generator designed for end lights and sidelight fibres where colour and twinkle effect are required. Typical fields of application: exterior lighting, entrances, fountains, swimming pools, indication lights and façade lighting. FL 1500 C DMX XT Dual features a DMX controlled colour and twinkle wheel and very smooth dimming. Additional features are instant-on and hot restrike. Colour wheel and twinkle wheel versions as well as dimmable white light versions are also available. All versions are available in an indoor series.
| Title | Item | |
|---|---|---|
|
CTC filter -1000K Ø28 | 01261019 |
|
CTC filter -1200K Ø28 | 01261020 |
|
CTC filter -900K Ø28 | 01261021 |
|
CTC filter +2000K Ø28 | 01261022 |
|
CTC filter +1000K Ø28 | 01261023 |
|
FL 1500 XT filter holder | 49001530 |
|
Adaptor Ø28/Ø9 | 78000130 |
|
DMX line termination, XLR male | 99030065 |
|
DMX 512 Sunlite control unit, IP | 01600303 |
|
DMX 512 Sunlite control unit, USB | 01600302 |
|
DMX cable 2.5 m for XT-2 | 99030061 |
|
DMX cable 11 to 50 m for XT-2 | 99030064 |
|
DMX cable 10 m XLR plugs | 99030057 |
|
DMX cable 1 to 50 m from control unit | 99030060 |
|
DMX cable 10 m XLR plug for XT-2 serie | 99030063 |
|
DMX cable 5 m for XT-2 | 99030062 |
|
DMX kabel 51-100 m XLR stik | 99030059 |
|
DMX cable 11 to 50 m XLR plugs | 99030058 |
|
DMX cable 5 m XLR plugs | 99030052 |
|
DMX cable 2.5 m XLR plugs | 99030056 |
|
DMX cable per metre | 99030055 |
|
DMX 512 splitter | 01600310 |
