Ball & Socket Medium grey

Item no.

Elegantly designed adjustable and discrete ball-and-socket joint fitting. The fitting is equipped with a lens for adjustment of the lighting angle. This fitting is ideal for illumination of objects in display cases and show windows or where the requirement is for flexible light that is easily adjustable to varying displays. The fitting is available in several finishes.

OpticsØ12 mm lens
Beam angle11° - 32°
MaterialAluminium
ColourGrey
Surface treatmentAnodised
Tilt27°
Rotate360°

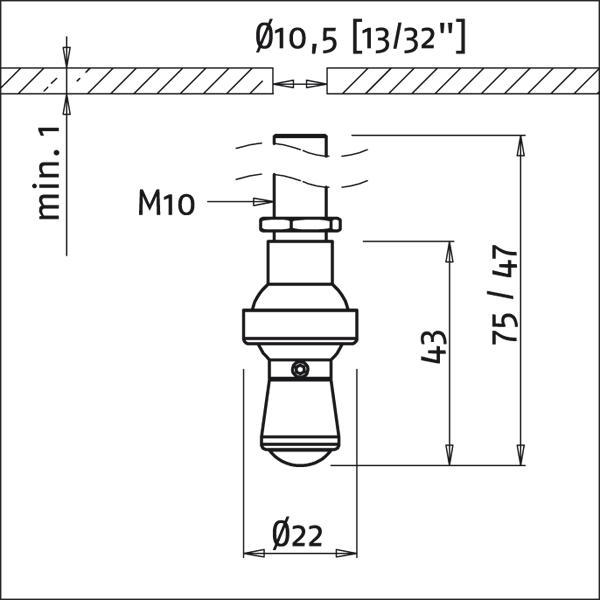

SizeØ22 x 51 mm
Weight25 g
MountingSurface-mounted
Mounting holeØ10 mm
Built-in height32 mm
Min. tail sizeØ1 mm
Max. tail sizeØ4.5 mm
Protection ratingIP 44

Show all
Title Item
Fitting Termination 99030001
