Light Tube Ø5 custom grey

Item no.

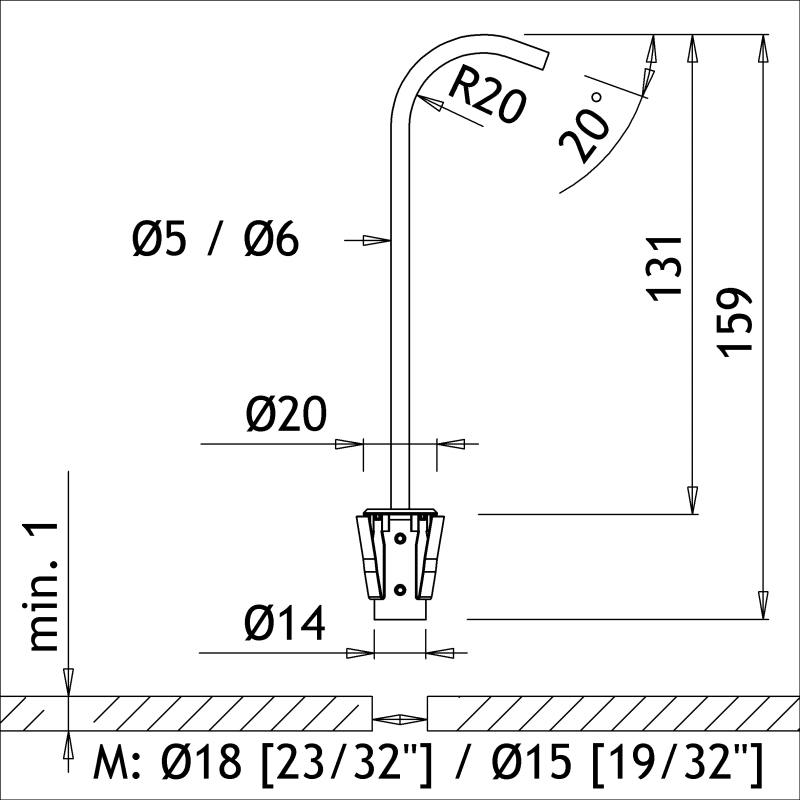

For display case and object illumination. Custom height and light direction, by ordering specify measure “A” (Max height A 700mm) and Angle “B” (B max 45 deg). Other dimensions ask at order. Consists of one tube with PMMA fibres and mounting bushing.

Beam angle54°
MaterialAluminium
ColourGrey
Surface treatmentAnodised
Rotate360°
SizeCustomer specified
Weight21 g
MountingRecessed with spring
Mounting holeØ18 mm
Built-in height30 mm
Min. tail sizeØ3 mm
Max. tail sizeØ3 mm
Protection ratingIP 20

Show all
Title Item
Fitting Termination 99030001
