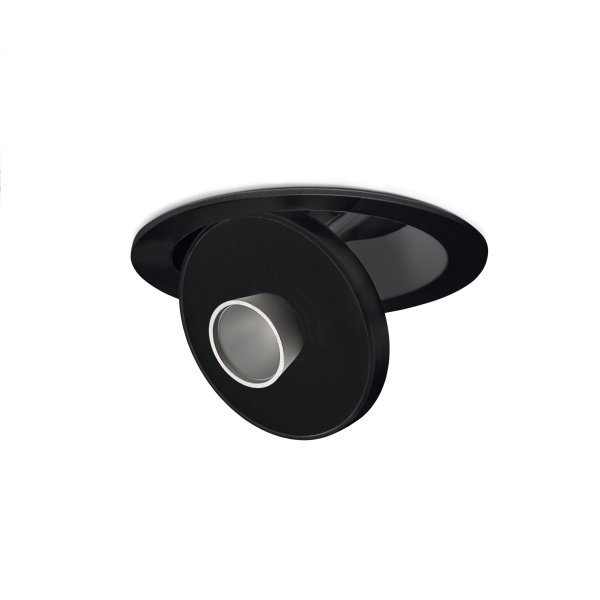

Corvus 1r 30 3000K black

Item no.

A tiltable, rotatable, dimmable downlight for indoor application. For ambient lighting, accent lighting, decorative effects, wall-washing. For showcases, niches, ceiling-mounted, wall-mounted. For room lighting, surface lighting, object illumination. Uncompromising light quality based on exceptional LED technology. Smooth control of light distribution. Exceptional light control. Easy to integrate. Intuitive for professionals and end users alike. Reflectors can be changed any time to meet new lighting requirements. Reflectors can be changed easily during normal operations.

SizeØ62 x 9.5 mm
Total power1.1 W
Input current350 mA Max.
Driver modeConstant Current
LED efficacy63 lm/W
Fixture luminous efficacy42 lm/W
Luminaire luminous efficacy19 - 38 lm/W
Thermal protectionNo
Max. ambient temperature45 °C
Min. ambient temperature-20 °C
Light sourceLED
Light source lifetime30,000 h
Light source manufacturerNichia
Light source colour temperature3,000 K
Light source CRI-8 (Ra)91
Light source CRI-1487
Luminaire CRI-8 (Ra)90
Luminaire CRI-1486
UV-A (380-320 nm)<1 µW/lm
UV-B (320-280 nm)<1 µW/lm
Temperature Measurement PointCentre, back of head
Surface temp. increment above ambient30 °C
Max. LED junction temp90 °C
Max.LED junction temp.Manufacturer data120 °C
Operating environmentIndoor / dry locations
Protection ratingIP 50
CleaningDry cloth only
MaterialAlMgSi0,5 6060 + POM
Weight90 g
Total luminous flux45 lm
Surface treatmentAnodised and painted
Beam angle30°
MountingRecessed with spring

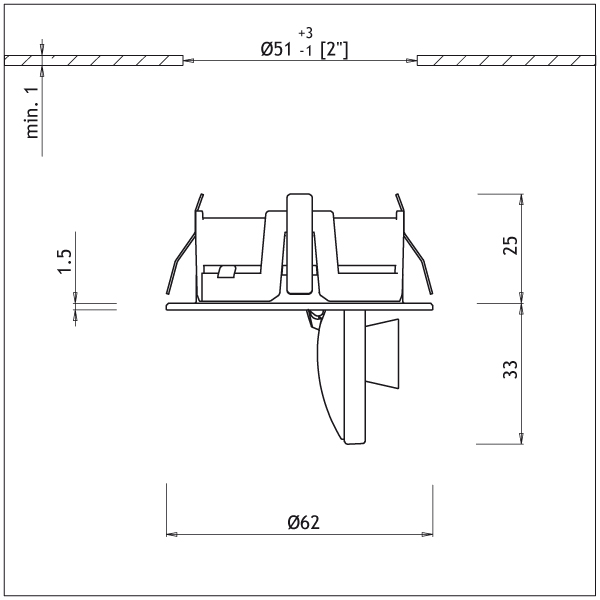

Mounting holeØ51 +3/-1 mm
Built-in height25 mm
Cable typeAWG 22 x 2m
Plug typeJST RCY

Show all
Title Item
Reflector b medium 45 black 11260410
Reflector b wide 60 black 11260610
1-LED spare module 1a 4500K 11295145
Driver set 1, 1-10V, 350mA 11480031
Driver set 4, DALI, 350mA 11480034
Driver set 7, Zigbee, 350mA 11480037
Title Item
Reflector b medium 30 black 11260310
1-LED spare module 1a 3000K 11295130
