RobLight SR PMMA Ø14 mm (144 x Ø0.75 mm)

Item no.

A side radiating fiber with a twisted rope-like structure. It has a uniform light radiating from all sides. Expect light loss over length. Recommendable to have light sources in both ends. The side radiating fiber has mainly decorative purposes. Suitable for e. g. cove lighting, bridges or stair cases.

Fiber typePMMA
SizeØ14 mm
Dia. of raw fibersØ0.75 mm
No. of raw fibers144 pcs
Jacket materialPVC
Min. bending radius150 mm
Max. tails in Ø91 pcs
Max. tails in Ø286 pcs
Max. tails in Ø28 randomised6 pcs
Weight143 g/m

Show all
Title Item

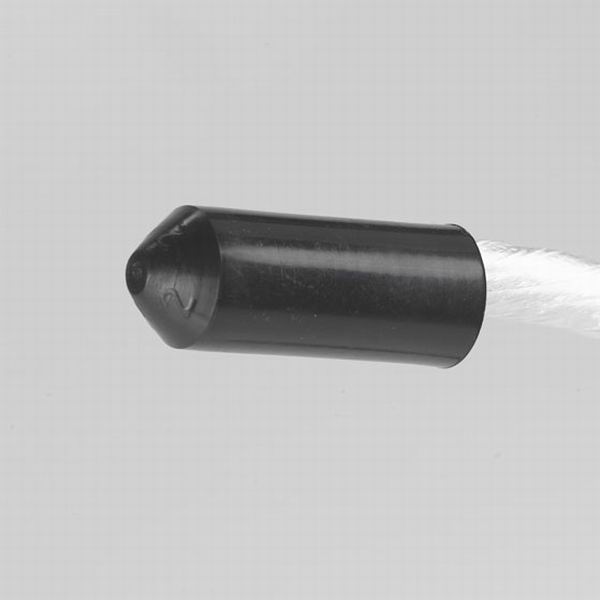

SR End Cap Ø20 mm 74000020

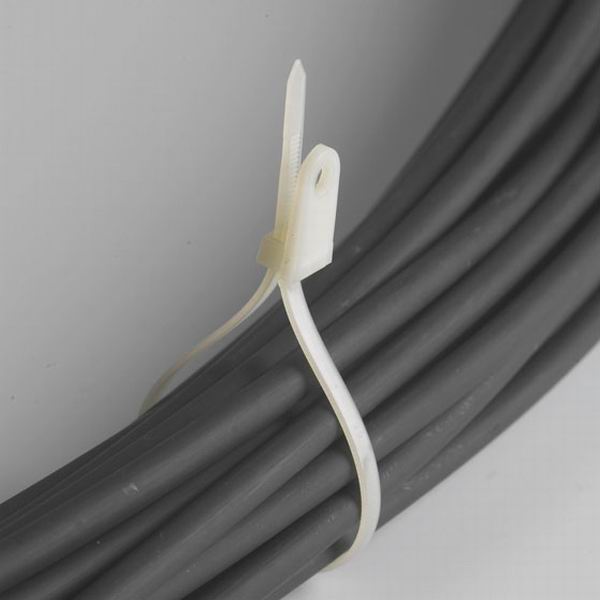

SR Cable Binders, 100 pcs. 93001040

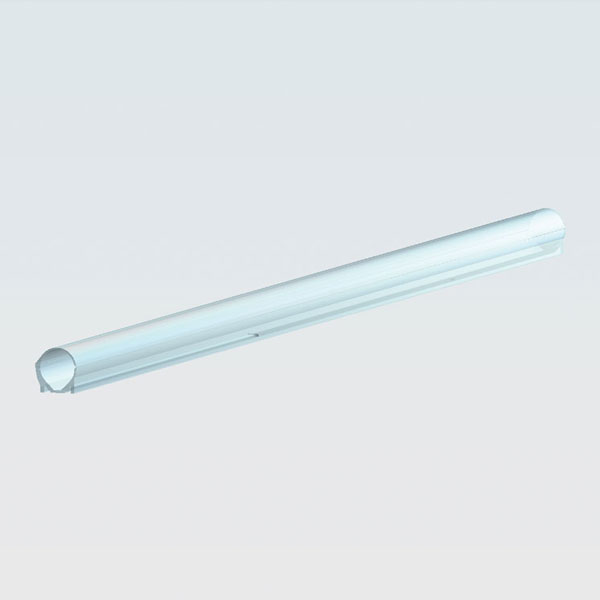

SR Mounting Channel Ø14 mm 2 m 93001063

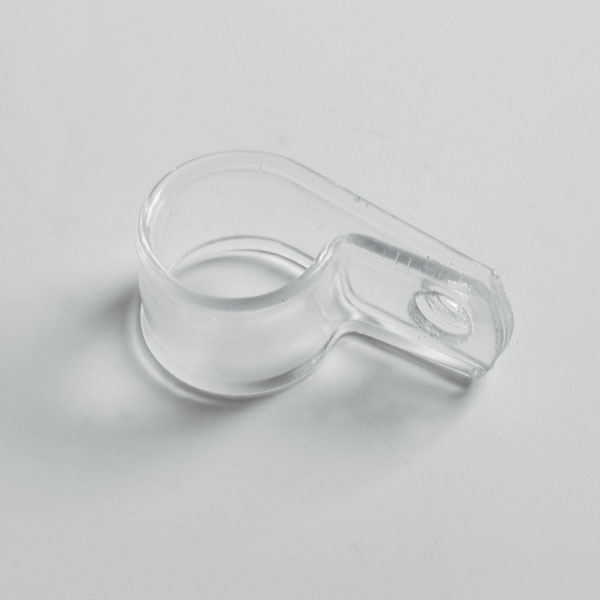

P-clips for SR Ø14 25 pcs. 93001073

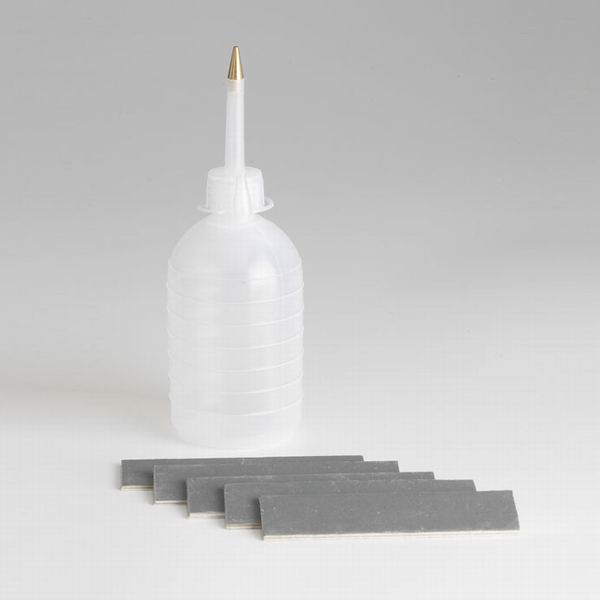

SR DIY Polishing Kit 99040008

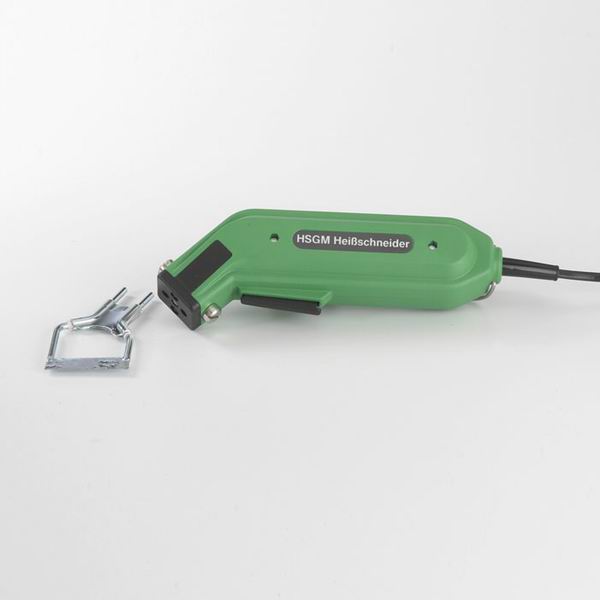

SR DIY Hot knife, 230 V 50/60 Hz 99040010
DIY Common End Ø9 (1 x Ø14 mm SR) 99040043
DIY Common End Ø28 (1 x Ø14 mm SR) 99040050
DIY Common End Ø28 (2 x Ø14 mm SR) 99040052
DIY Common End Ø28 (6 x Ø14 mm SR) 99040054
Title Item
Special termination, see specification 99029999
Cut Termination 99030013
SR End Cap Waterproof with reflector 99040003
