Beespot, LED - Custom

Item no.

Beespot for indoor, outdoor or submerged use. Fully adjustable in all directions. For accent lighting, decorative effects and wall-washing. For facades, for surfaces large and small, for objects large and small. Fibre optic series also available. By ordering specify: CTC 3,000 K or 4,500 K and type of Lens: 25°, 35°, 55° or Oval 25°/45°.

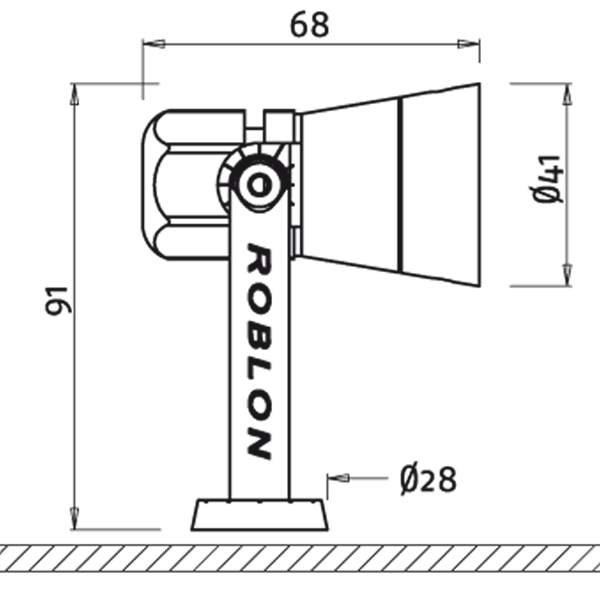

Size90 x 77 x 91 mm
ColourGrey
Light source power2.5 W
Total power2.5 W
Input current700 mA Max.
Driver modeCC
DimmableNo
LED efficacy63 / 85 lm/W
Fixture luminous efficacy42 - 45 / 56 - 74 lm/W
Luminaire luminous efficacy19 - 38 / 19 - 25 lm/W
Thermal protectionNo
Max. ambient temperature45 °C
Min. ambient temperature-20 °C
Light sourceLED
Light source lifetime35,000 h
Light source manufacturerCree
Light source catalogue numberXP-G
Light source colour temperature3,000 / 4,500 K
Light source CRI-8 (Ra)88 / 74
Light source CRI-1484 / 64
Luminaire CRI-8 (Ra)85 / 70
Luminaire CRI-1483 / 65
UV (200-400 nm)<1 µW/lm
UV-A (380-320 nm)<1 µW/lm
UV-B (320-280 nm)<1 µW/lm
Lumen maintenance98.7 % after 6,000 hours
Temperature Measurement PointOn ring in the middle of fitting
Surface temp. increment above ambient25 °C
Max. LED junction temp115 °C
Max.LED junction temp.Manufacturer data120 °C
Operating environmentIndoor / dry locations
Protection ratingIP 68 down to 1 m
CleaningDry cloth only
MaterialStainless steel AISI 303 / AISI 316
Weight200 g
Total luminous flux105/147, 118/165, 109/152 or 90/125
Surface treatmentGlassblasted
OpticsØ26 mm lens
Beam angle25°, 35°, 55° or 25°/45°
Tilt360°
Rotate360°
MountingSurface mounted with screws
Cable typeH07RN-F 2G1.5 Rubber wire
Plug typeTerminal strip

Show all
Title Item
Lens oval 25°/45° 11790450
Lens 35° 11790350
Lens 25° 11790250
Driver set CC IP 67 700mA 11760003
Driver set CC 700mA 11660002
Driver set CC 700mA dim 1-10 V 11660001
Beespot Arm 500 mm 03130010
1-LED spare module 1c 3000K 11793000
Roblon Dual Tool b 11760010
Lens 55° 11790550
