Aquarius 35 Medium

Item no.

Aquarius Focus is an extraordinarily elegant fitting specially developed for swimming pools and spas. Aquarius Focus is equipped with a lens for adjustment of the lighting angle. Aquarius Focus is ideal for plate mounting or embedding. The fitting adds exclusivity to any wet-room solution from fountains and display aquariums to swimming pools and spas.

OpticsØ12 mm lens
Beam angleØ3: 17-35°/ Ø4.5: 22-35°/ Ø6: 36°
MaterialStainless steel EN W.nr. 1.4435
ColourGrey
Surface treatmentPickled
Rotate360°

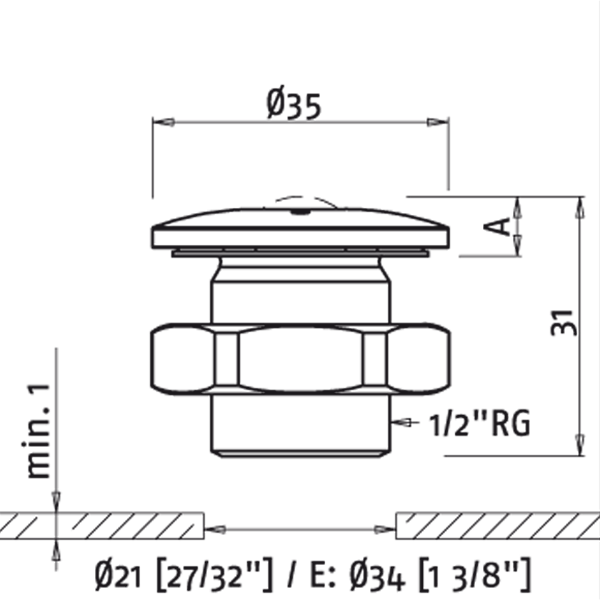

SizeØ35 x 7 mm
Weight100 g
MountingSurface mounted with nut
Mounting holeØ21 mm
Built-in height25 mm
Min. tail sizeØ2 mm
Max. tail sizeØ6 mm
Protection ratingIP 68 down to 10 m

Show all
Title Item

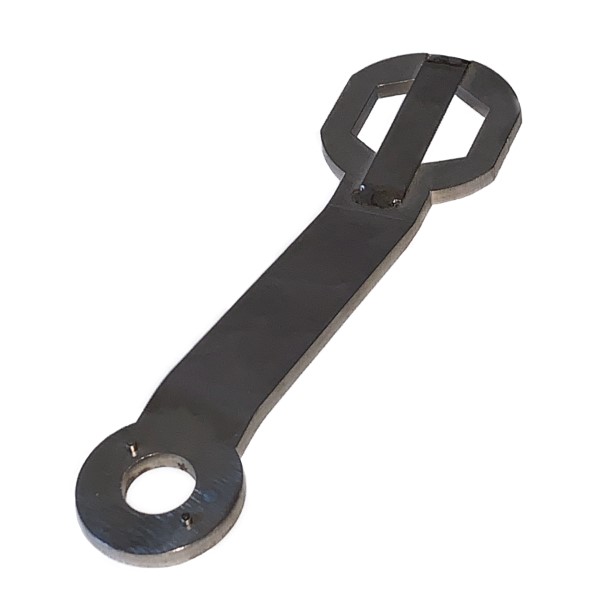

Aquarius 35 Mounting Wrench 03130758

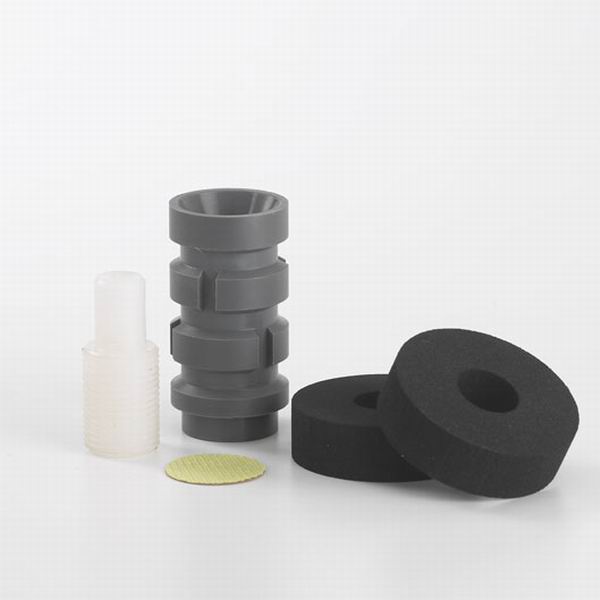

Aquarius 35 Embedment Kit 03130759
Flexhose 20x16mm black pvc 73500620
Title Item
Fitting Termination 99030001
