Aquarius 70 Focus

Item no.

Aquarius Focus is an extraordinarily elegant fitting specially developed for swimming pools and spas. Aquarius Focus is equipped with a lens for adjustment of the lighting angle. Aquarius Focus is ideal for plate mounting or embedding. The fitting adds exclusivity to any wet-room solution from fountains and display aquariums to swimming pools and spas.

OpticsØ26 mm lens
Beam angleØ6: 14-33°/ Ø8: 17-35°/ Ø10: 19-37°
MaterialStainless steel EN W.nr. 1.4435
ColourGrey
Surface treatmentPickled
Rotate360°

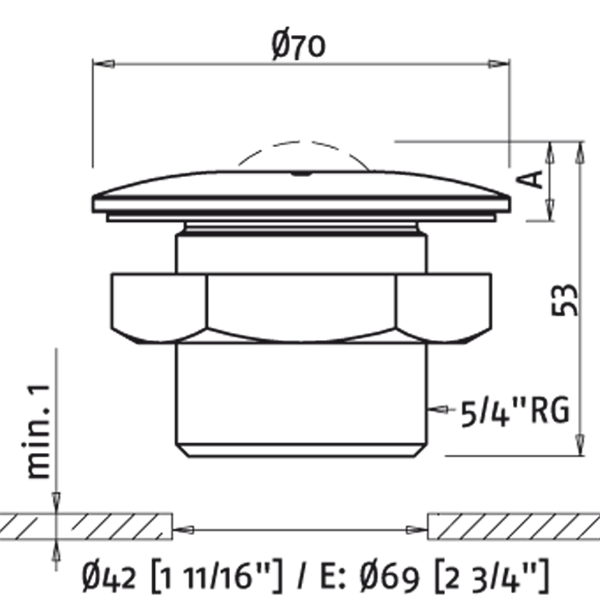

SizeØ70 x 13 mm
Weight510 g
MountingSurface mounted with nut
Mounting holeØ42 mm
Built-in height42 mm
Min. tail sizeØ3 mm
Max. tail sizeØ10 mm
Protection ratingIP 68 down to 10 m

Show all
Title Item
Aquarius 70 Mounting Wrench 03130768
Aquarius 70 Embedment Kit 03130769
Title Item
Fitting Termination 99030001
