Pyxis 1n 30 3000K black

Item no.
Categories:

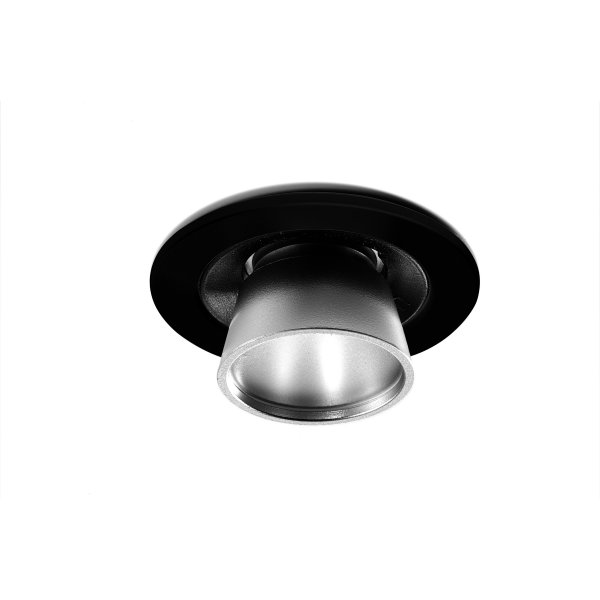

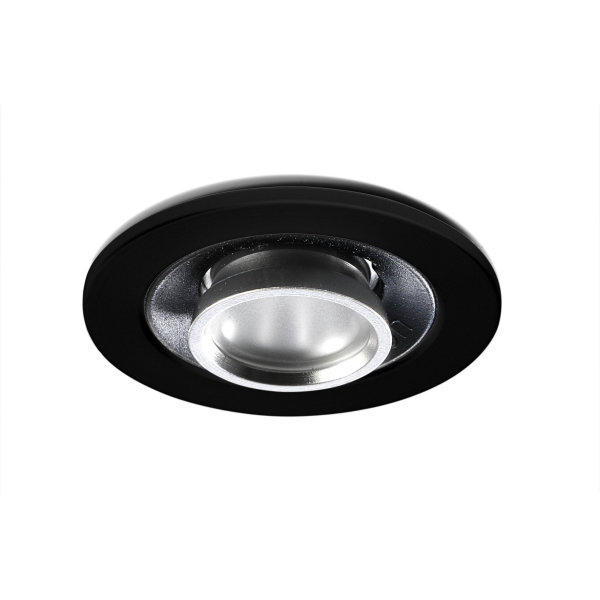

A recessed, dimmable downlight with fixed beam angle for indoor application. For ambient lighting, accent lighting, decorative effects, wall-washing. For showcases, niches, ceiling-mounted, wall-mounted. For room lighting, surface lighting, object illumination. Uncompromising light quality based on exceptional LED technology. Smooth control of light distribution. Easy to integrate. Intuitive for professionals and end users alike. Reflectors can be changed any time to meet new lighting requirements. Reflectors can be changed easily during normal operations.

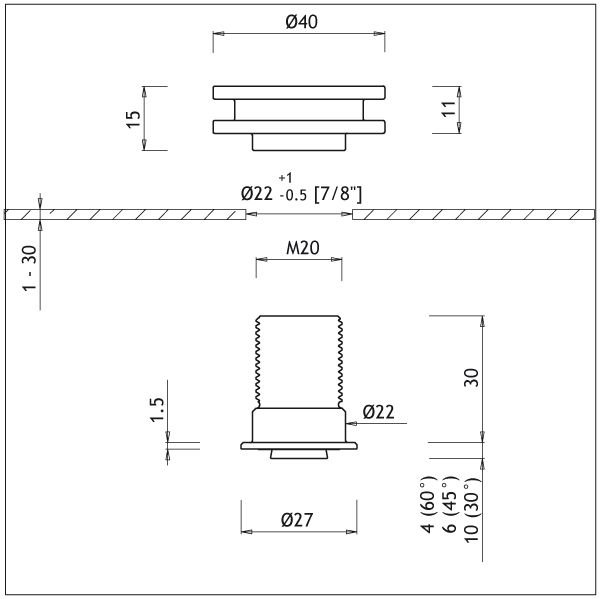

SizeØ27 x 10 mm
ColourBlack
Total power1.1 W
Input current350 mA Max.
Driver modeConstant Current
DimmableYes
LED efficacy63 lm/W
Fixture luminous efficacy42 lm/W
Luminaire luminous efficacy19 - 38 lm/W
Thermal protectionNo
Max. ambient temperature45 °C
Min. ambient temperature-20 °C
Light sourceLED
Light source lifetime35,000 h
Light source manufacturerNichia
Light source colour temperature3,000 K
Light source CRI-8 (Ra)91
Light source CRI-1487
Luminaire CRI-8 (Ra)90
Luminaire CRI-1486
UV-A (380-320 nm)<1 µW/lm
UV-B (320-280 nm)<1 µW/lm
Temperature Measurement PointForside af armatur
Surface temp. increment above ambient30 °C
Max. LED junction temp90 °C
Max.LED junction temp.Manufacturer data120 °C
Operating environmentIndoor / dry locations
Protection ratingIP 50
CleaningDry cloth only
MaterialAlMgSiPb 6262R + POM
Weight90 g
Total luminous flux45 lm
Surface treatmentPainted
OpticsReflector
Beam angle30°
MountingRecessed with nut
Mounting holeØ22 mm
Built-in height30 mm
Cable typeAWG 22 x 2m
Plug typeJST RCY

Show all
Title Item
Reflector a medium 45 11360420
Reflector a wide 60 11360620
Roblon Dual Tool a 11361001
1-LED spare module 1b 4500K 11395145
Driver set 1, 1-10V, 350mA 11480031
Driver set 4, DALI, 350mA 11480034
Driver set 7, Zigbee, 350mA 11480037
Title Item
Reflector a medium 30 11360320
1-LED spare module 1b 3000K 11395130
