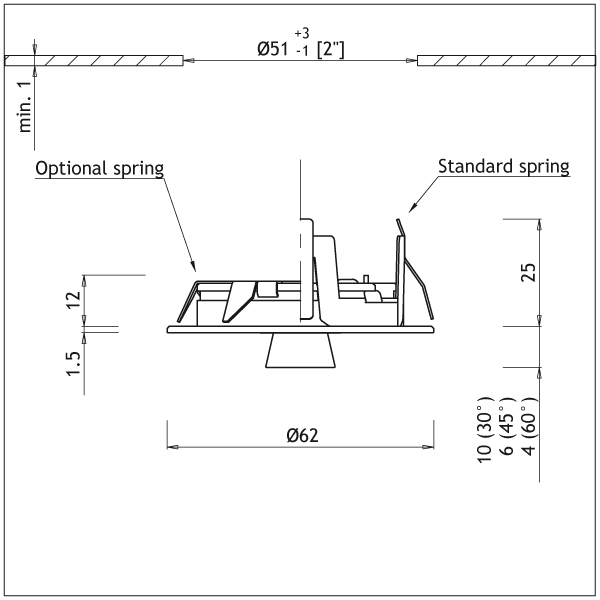

Size Ø62 x 10 mm Colour Black Total power 1.1 W Input current 350 mA Max. Driver mode Constant Current Dimmable Yes LED efficacy 63 lm/W Fixture luminous efficacy 42 lm/W Luminaire luminous efficacy 19 - 38 lm/W Thermal protection No Max. ambient temperature 45 °C Min. ambient temperature -20 °C Light source LED Light source lifetime 35,000 h Light source manufacturer Nichia Light source colour temperature 3,000 K Light source CRI-8 (Ra) 91 Light source CRI-14 87 Luminaire CRI-8 (Ra) 90 Luminaire CRI-14 86 UV-A (380-320 nm) <1 µW/lm UV-B (320-280 nm) <1 µW/lm Temperature Measurement Point Forside af armatur Surface temp. increment above ambient 30 °C Max. LED junction temp 90 °C Max.LED junction temp.Manufacturer data 120 °C Operating environment Indoor / dry locations Protection rating IP 50 Cleaning Dry cloth only Material AlMgSiPb 6262R + POM Weight 90 g Total luminous flux 45 lm Surface treatment Painted Optics Reflector Beam angle 30° Mounting Recessed with nut Mounting hole Ø51 +3/-1 mm Built-in height 25 mm Cable type AWG 22 x 2m Plug type JST RCY
Pyxis 1r 30 3000K black
A recessed, dimmable downlight with fixed beam angle for indoor application. For ambient lighting, accent lighting, decorative effects, wall-washing. For showcases, niches, ceiling-mounted, wall-mounted. For room lighting, surface lighting, object illumination. Uncompromising light quality based on exceptional LED technology. Smooth control of light distribution. Easy to integrate. Intuitive for professionals and end users alike. Reflectors can be changed any time to meet new lighting requirements. Reflectors can be changed easily during normal operations.
