XPO X-LED Horizontal Ø8mm legs black

Item no.
Categories:

XPO X-LED Horizontal is the perfect choice for your interior environment if you are aiming for a sublime light in your showcases, niches, exhibition or display areas. It includes a warm white light solution and it has high colour rendering. Dimmable options are also available. The finish is black or grey. Other finishes are obtainable on request. XPO X-LED Horizontal stands on 8mm legs and can be mounted on vertical or horizontal surfaces. Its measurements are customised according to your specific needs.

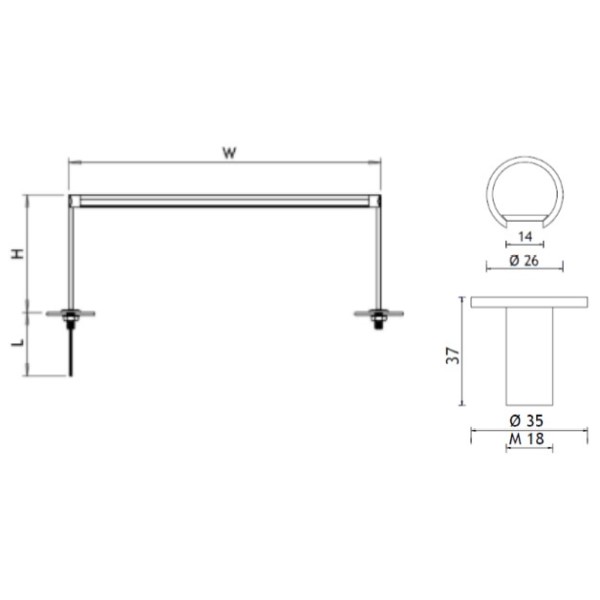

SizeØ26 x min. 160 mm - max. 1.850 mm
ColourBlack
Supply voltage24 V DC
Total power1 - 13 W
Driver modeConstant Voltage
DimmableYes
LED efficacy100 lm/W
Thermal protectionIntegrated auto
Max. ambient temperature45 °C
Min. ambient temperature-20 °C
Light sourceLED
Light source lifetime50,000 h
Light source manufacturerXicato
Light source catalogue numberXLT
Light source colour temperature3,000 K
Light source CRI98
Light source CRI-8 (Ra)98
Light source CRI-1497
EMC markingJa
UV (200-400 nm)<1 µW/lm
UV-A (380-320 nm)<1 µW/lm
UV-B (320-280 nm)<1 µW/lm
Lumen maintenanceL70 B0 efter 50.000 timer
Temperature Measurement PointBackside center of conduit
Surface temp. increment above ambient30 °C
Max. LED junction temp100 °C
Max.LED junction temp.Manufacturer data120 °C
Operating environmentIndoor / dry locations
Protection ratingIP 20
CleaningDry cloth only
MaterialAlMgSi0,5 6063 + POM + ABS
Weight800 g per m conduit
Fixture luminous flux720 lm/m
Surface treatmentAnodised
OpticsDiffusor
Rotate±150°
MountingSurface mounted with nut or screws
Mounting holeØ19 mm
Built-in height34 mm
Cable typeAWG 18
Plug typeTE AMP

Show all
Title Item
XPO-led cover flange black 11160010
XPO-led cover flange grey 11160020
XPO-led cover flange with screws black 11160110
XPO-led cover flange with screws grey 11160120
XPO-led cover flange 2 parts black 11160210
XPO-led cover flange 2 parts grey 11160220
XPO-led mounting clips 10 pcs black 11160310
XPO-led mounting clips, 10 pcs, grey 11160320
XPO-led mounting bracket, 10 pcs, black 11160410
XPO-led mounting bracket, 10 pcs, grey 11160420
Driver set 15W for XPO X-LED 11480022
Title Item
Cover for XPO-x 93 transmission 43000016
Cover for XPO-x 80 transmission 43000015
Cover for XPO-x 53 transmission 43000013
