Compass Wide Opal burnished

Item no.

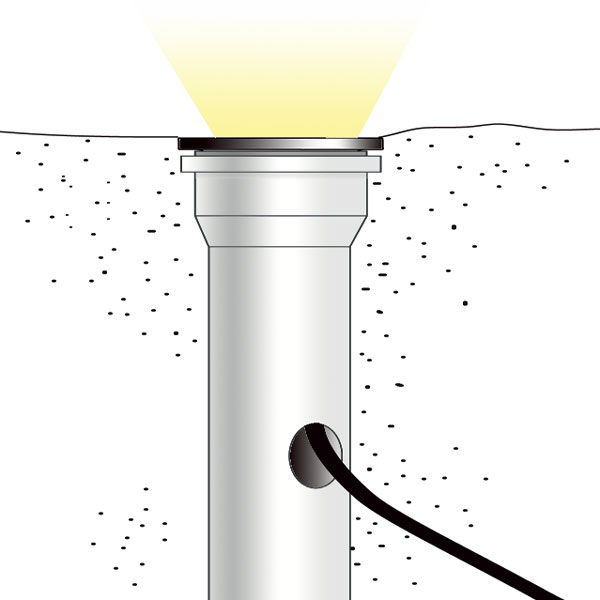

Compass Wide is an uplight in corrosion- and acid-resistant steel with clear or opal plane glass and fixed lighting angle. Compass is a sturdy recessed fitting in timeless, elegant design. Compass Wide is suitable for lighting where the light is not to be projected over long distances and where a wide light beam is required. Compass is available with plane or chamfered flange. The fitting is supplied with a white plastic insert which is available as an option in several colours.

OpticsØ69 mm opal glass
Beam angle114°
MaterialStainless steel AISI 316
ColourGrey
Surface treatmentPickled
Rotate360°

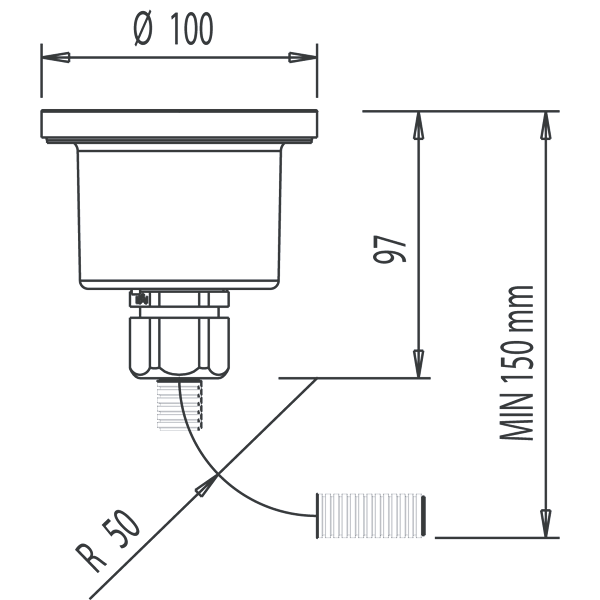

SizeØ100 mm
Weight790 g
MountingEmbedded / screw mounted
Mounting holeØ100 mm
Built-in height98 mm
Min. tail sizeØ3 mm
Max. tail sizeØ6 mm
Protection ratingIP 68 down to 1 m
Max. dynamic load20 J
Max. static load2,500 kg

Show all
Title Item
Compass Mounting Tube 03130302
Compass Chamfered Flange polished 03130226
Compass Chamfered Flange burnished 03130227

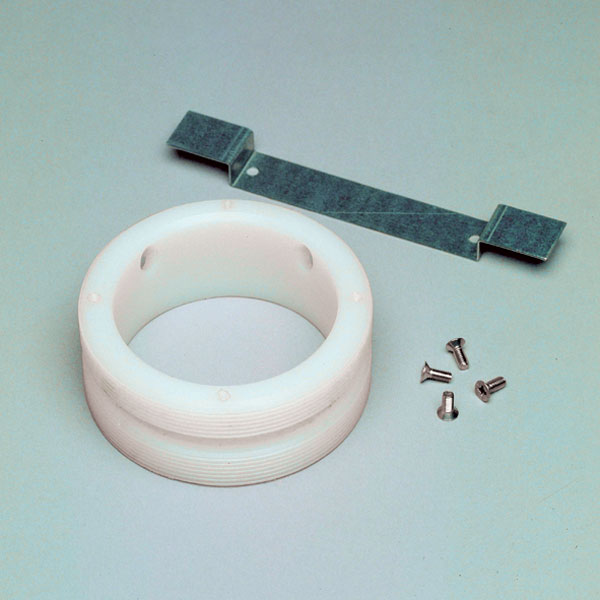

Compass Embedment kit 03130300

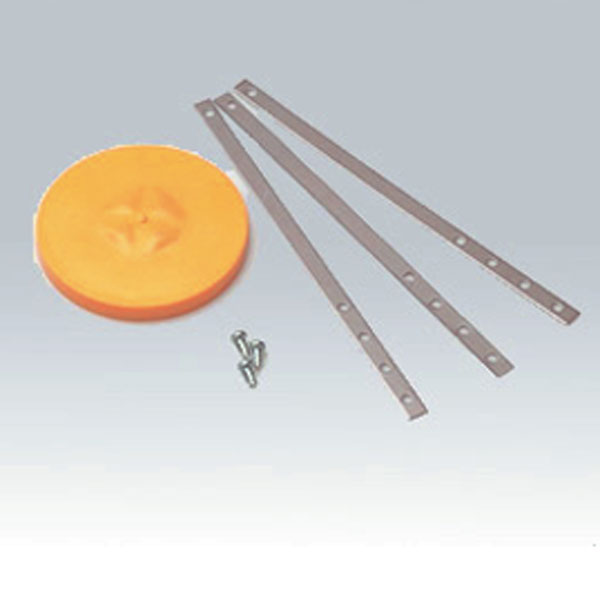

Compass Cementation kit 03130301
Compas Wide/Focus Insert, Grey 43001020
Compas Wide/Focus Insert, Green 43001021
Compas Wide/Focus Insert, Blue 43001022
Compas Wide/Focus Insert, Gold 43001024
Compass Clear Glass 54000050

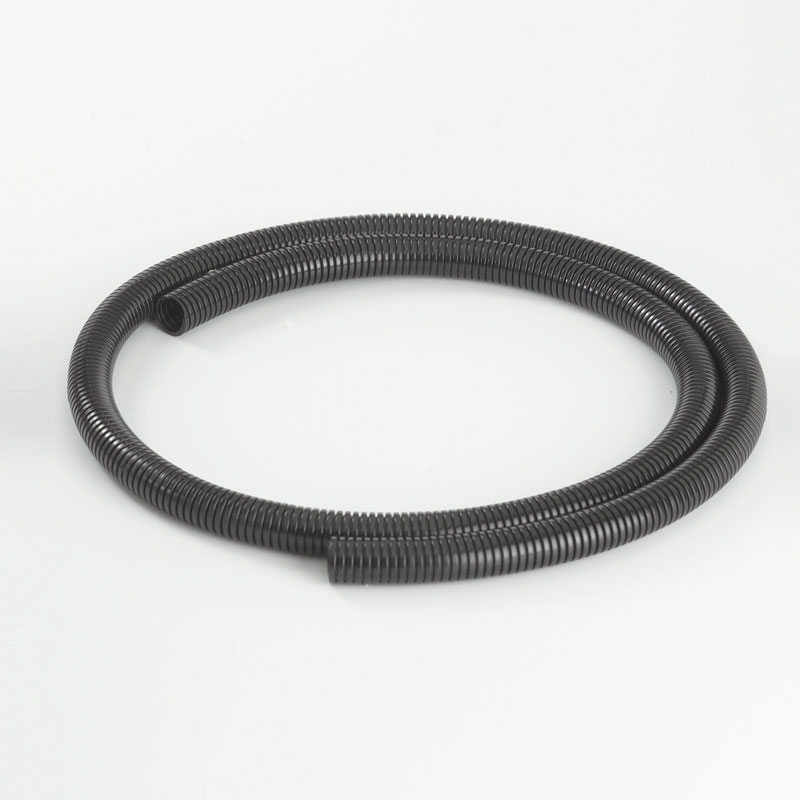

Nylon Flex Hose Ø13 x Ø15.8 mm 73500613
Title Item
Compass Opal Glass 54000051
Title Item
Compass Termination 99030004
