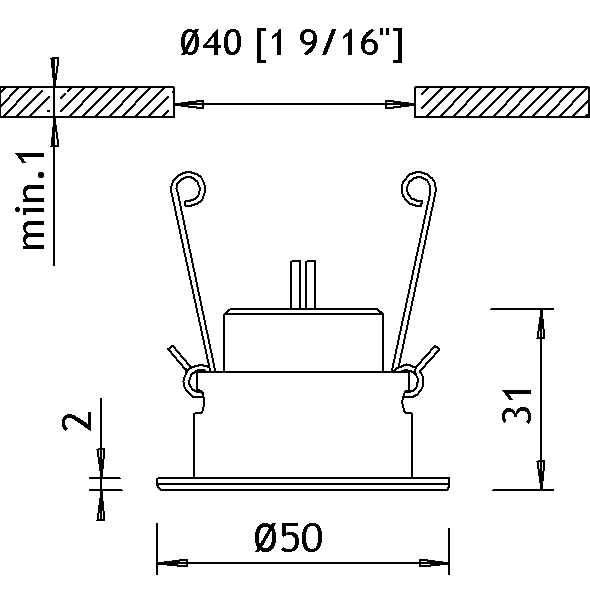

Size Ø50 x 2 mm Colour Black Total power 2.4 W Input current 700 mA Max. Driver mode Constant Current Dimmable Yes LED efficacy 50 lm/W Fixture luminous efficacy 32 - 39 lm/W Thermal protection No Max. ambient temperature 40 °C Min. ambient temperature -10 °C Light source LED Light source lifetime 50000 h Light source manufacturer Cree Light source colour temperature 3,000 K Light source CRI 90+ Light source CRI-8 (Ra) Min. 90 UV-A (380-320 nm) <1 µW/lm UV-B (320-280 nm) <1 µW/lm Lumen maintenance L70 Temperature Measurement Point Back of fitting, wire exit Max.LED junction temp.Manufacturer data 150 °C Operating environment Indoor / dry locations Protection rating IP 20 Cleaning Dry cloth only Material Aluminium Weight 90 g Total luminous flux 115 lm Surface treatment Anodised Optics Lens Beam angle 10°, 20°, 30°, or 48° / 8° Tilt No Rotate 360° Mounting Recessed Mounting hole Ø40 mm Built-in height 29 mm Cable type AWG 22 x 2m Plug type JST RCY
Ara 1 fixed 3000K black
Precise, controlled, well-defined light from a tiny, effective, well-designed LED fitting. For indoor use. Recessed and fixed. Choose 1 of 4 beam angles. Applications include object, display, area, ambient and accent lighting.
| Title | Item | |
|---|---|---|
|
Driver set 3, 1-10V, 700mA | 11480033 |
|
Driver set 9, Zigbee, 700mA | 11480039 |
|
Driver set 6, DALI, 700mA | 11480036 |
|

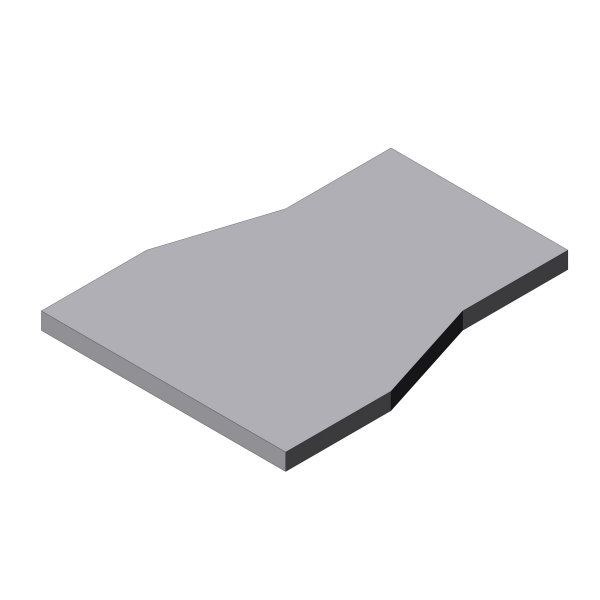

Filter clip A black | 11480006 |
|
Lens Tool A | 11480007 |
|

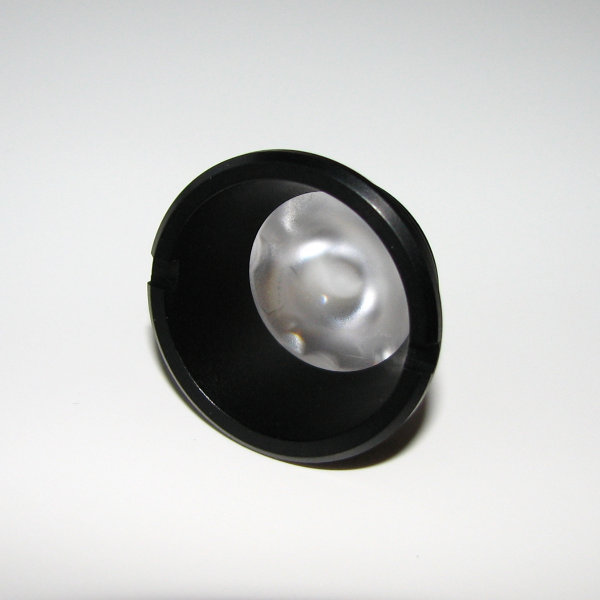

Lens A 10° black | 11480100 |
|

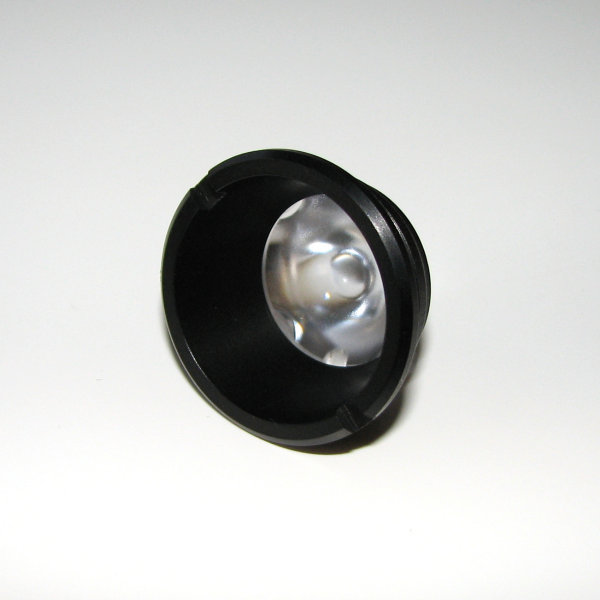

Lens A 20° black | 11480300 |
|

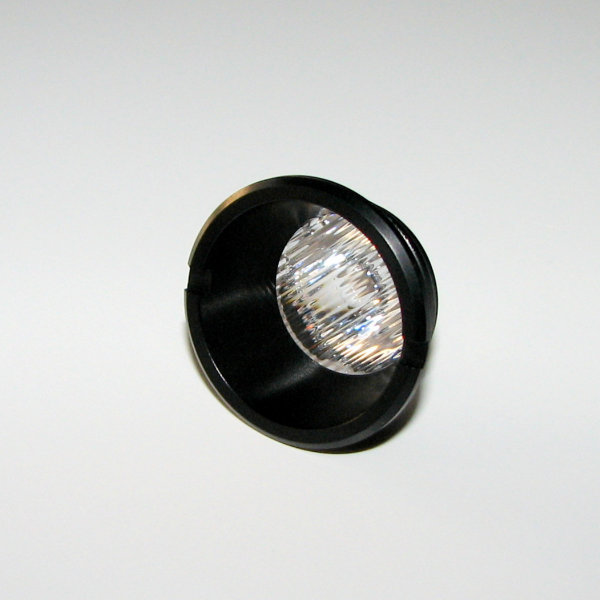

Lens A 48° / 8° black | 11480400 |
|
Lens A 30° black | 11480500 |
|

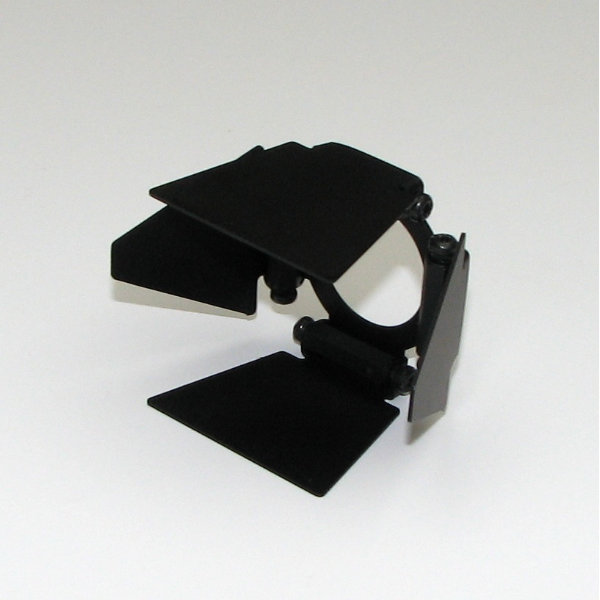

Barn doors Ara | 11488012 |
|

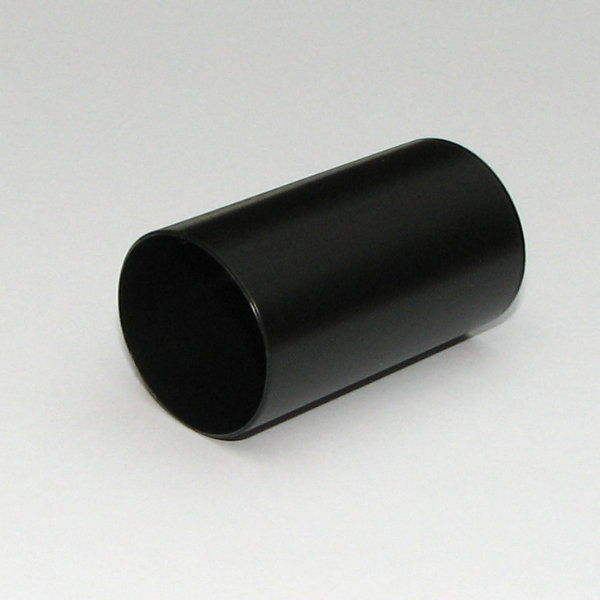

Ara Snoot 50 mm - black | 11488016 |
