Ara 1 30 3000K black

Item no.
Categories:

Precise, controlled, well-defined light from a tiny, effective, adjustable LED fitting. For indoor use. Recessed. 30° tilt. Choose 1 of 4 beam angles. Applications include object, display, area, ambient and accent lighting.

SizeØ50 x 2 mm
ColourBlack
Total power2.4 W
Input current700 mA Max.
Driver modeConst. Current
DimmableYes
LED efficacy50 lm/W
Fixture luminous efficacy32 - 39 lm/W
Thermal protectionNo
Max. ambient temperature40 °C
Min. ambient temperature-10 °C
Light sourceLED
Light source lifetime50000 h
Light source manufacturerCree
Light source colour temperature3,000 K
Light source CRI90+
Light source CRI-8 (Ra)Min. 90
UV-A (380-320 nm)<1 µW/lm
UV-B (320-280 nm)<1 µW/lm
Lumen maintenanceL 70
Temperature Measurement PointBack of fitting, wire exit
Max.LED junction temp.Manufacturer data150 °C
Operating environmentIndoor / dry locations
Protection ratingIP 20
CleaningDry cloth only
MaterialAluminium
Weight80 g
Total luminous flux90 lm
Surface treatmentAnodised
OpticsLens
Beam angle10°, 20°, 30°, or 48° / 8°
Tilt30°
Rotate360°
MountingRecessed

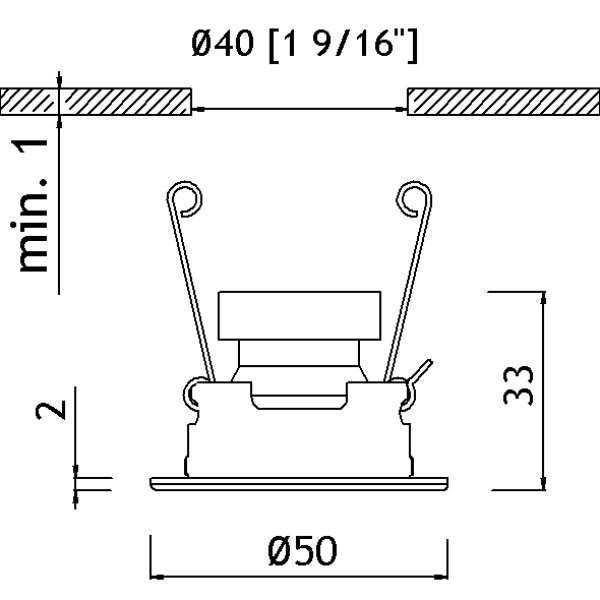

Mounting holeØ40 mm
Built-in height31 mm
Cable typeAWG 22 x 2m
Plug typeJST RCY

Show all
Title Item
Filter clip A black 11480006
Lens Tool A 11480007
Driver set 3, 1-10V, 700mA 11480033
Driver set 6, DALI, 700mA 11480036
Driver set 9, Zigbee, 700mA 11480039
Lens A 10° black 11480100
Lens A 20° black 11480300
Lens A 48° / 8° black 11480400
Lens A 30° black 11480500
Barn doors Ara 11488012
